High Durability White Zirconium Ceramic Beads Blasting Media for Light Metal Finish

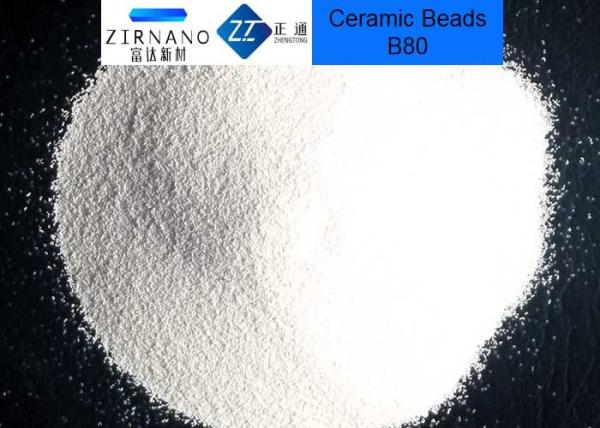

1. Description of Zirconium Ceramic (Beads) Blasting Media
The Zirconium Ceramic (Beads) Blasting Media is manufactured by high grade zirconium sand in electro
furnace under high temperature over 2000 degrees,its unique chemical composition and special physical
property makes it to be a high wear and fracture-resistant blasting media.
2. Main Technical Index of Ceramic (Bead) Blasting Media
| Commodity | Main Chemical Index | Main Physical Index |
| Ceramic (Beads) Blasting Media (Melting Method) | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized |
3.Main Product Features of Zirconium Ceramic (Bead) Blasting Media
High efficiency and long service life,which is 20-30 times compared with the one of glass beads when
treating the same parts,then reduce the refueling times and finally save the overall product cost;
Good blasting effect : The workpiece treated by ceramic beads will also achieve better visual effect and
texture as well as lower toughness compared with the one treated by glass beads.
High hardness and light weight, when a large quantity beads is quickly shot to the treatment surface,
it will get a certain thickness of surface strengthening layer to increase the
strength and fatigue resistance
Good sphericity and good elasticity makes it to be muti-angle rebound during usage,especially suitable
for complex metal and plastic parts to eliminate the stress and fatigue life
Special chemical composition and white color makes it no ferrous pollution to the treatment and no dust
and hidden dangers of silicosis to the worker’s body. It is usually used to replace the steel shot
when ferrous contamination is cared in the shot peening process.
4. Main Application of Ceramic (Bead) Blasting Media
Widely used in finishing the metal surface of 3C products including computer, mobile phone and camera;
Widely used to process the light metal such as mechanical products and medical instruments made by
aluminium alloy,titanium alloy etc.
Also used to clean the burrs,oil stain,oxide scale, rust in the treatment surface such as hardware and
molding tools ;
Shot peening for aviation& aerospace and shipbuilding industry such as springs,gears and other components;
Anti-fatigue and strengthening treatment in automotive industry such as gearbox gears, automotive aluminum
hubs etc.;
Comparation effect before and after ceramic bead blasting
5. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6. Why Choose Us?
Professional manufacturer,Providing good products with stable quality & favorable price;
Equipped with the most advanced production line and testing equipments,certificatd by ISO9001&14001;
Being the stable supplier of Foxconn,Samsung,products has exported to USA,Vietnam,South Korea,Japan
etc.
